Product Details
＋

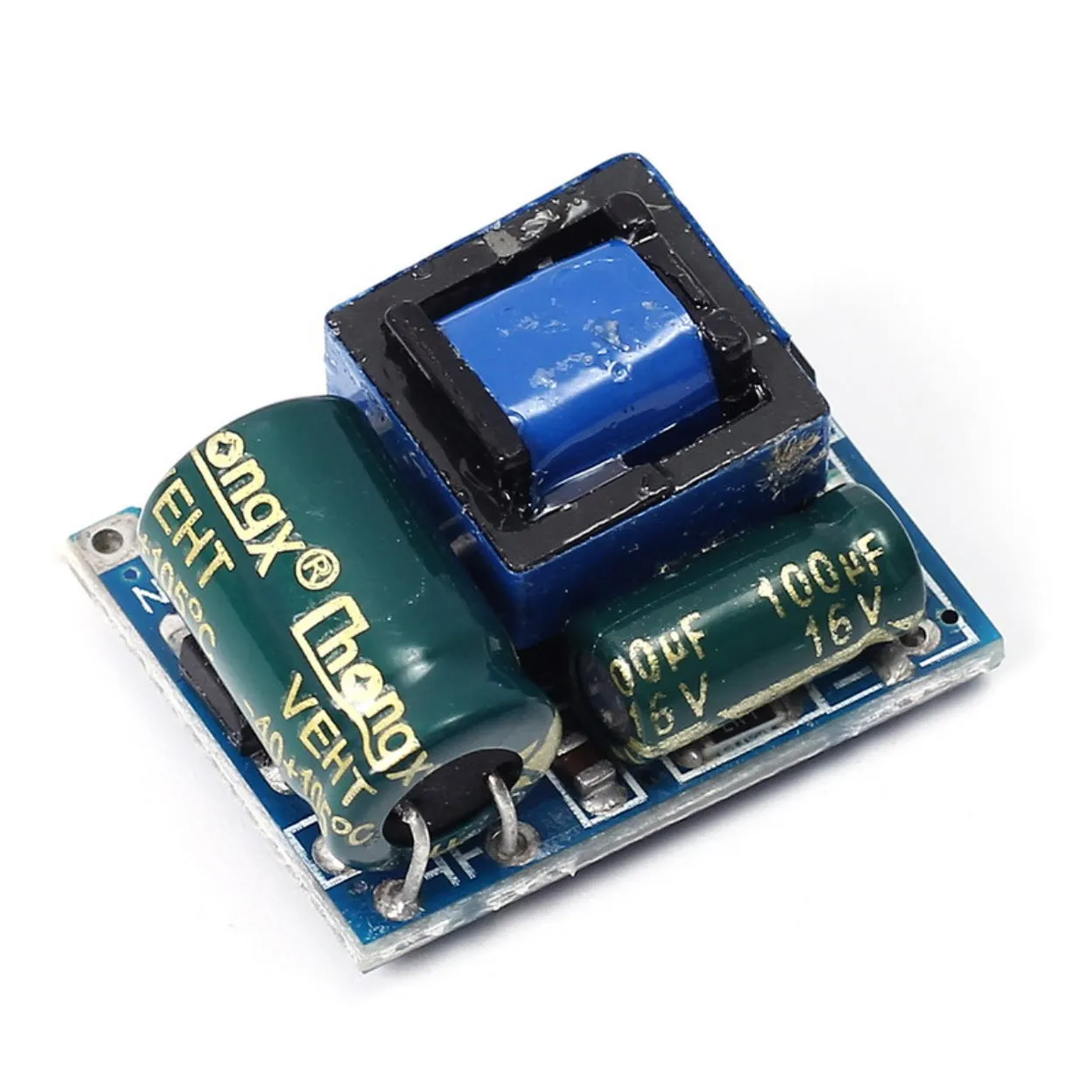

AC-DC 5V 600mA 3W Isolated Switching Power Supply Module 220V to 5V Buck Step Down Module Voltage Regulator for Arduino This Isolated Switching Power Supply is isolated industrial power modules, with temperature protection, over current and short circuit full protection, high and low voltage isolation, AC85 ~ 265V wide voltage input, AC and DC, 431 DC5V output voltage precision, ultra-small size, high reliability, cost-performance characteristics.
If it is used in a single live line intelligent on-off value, taking off the LED and changing the starting resistor will be OK; If you want to change the 10M resistor into 20M, just remove the LED.
If it is used in a single live line intelligent on-off value, taking off the LED and changing the starting resistor will be OK; If you want to change the 10M resistor into 20M, just remove the LED.
Features
- Input Voltage Range: AC 55-277V; DC 70-390V
- No Load Power: <0.05W; max input power: 3.5W
- Output Voltage: 5V; max output voltage range: 4.9-5.3V or 4.8-5.2V; ripple wave 60mW
- Output Current: 0-600mA; output indicator lamp 1mA red light
- Output Power: 3W; efficiency 80%
- Output Protection: overvoltage, overcurrent, overtemperature, overpower, short circuit protection, etc
- Applications: for zero line, live line intelligent switch, intelligent socket, equipment, and instructions, other controllers, etc
- Working temperature:-25~85℃
Installation Way

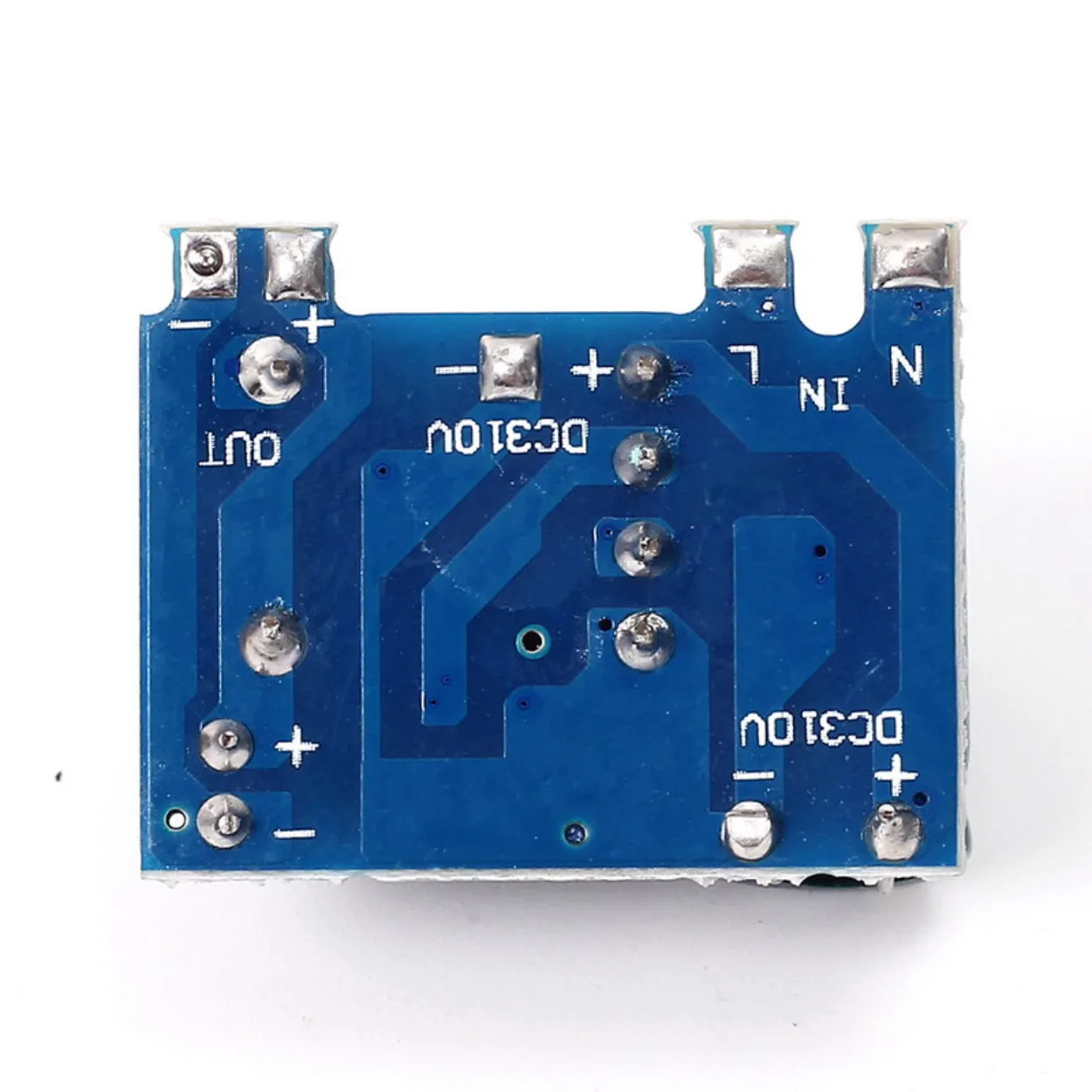

- Solder the input and output port pin on the PCB as independent components
- Solder the lead wire, and use the glue to fix
- PCB slotting, directly plug it on the PCB to solder
Physical Attributes

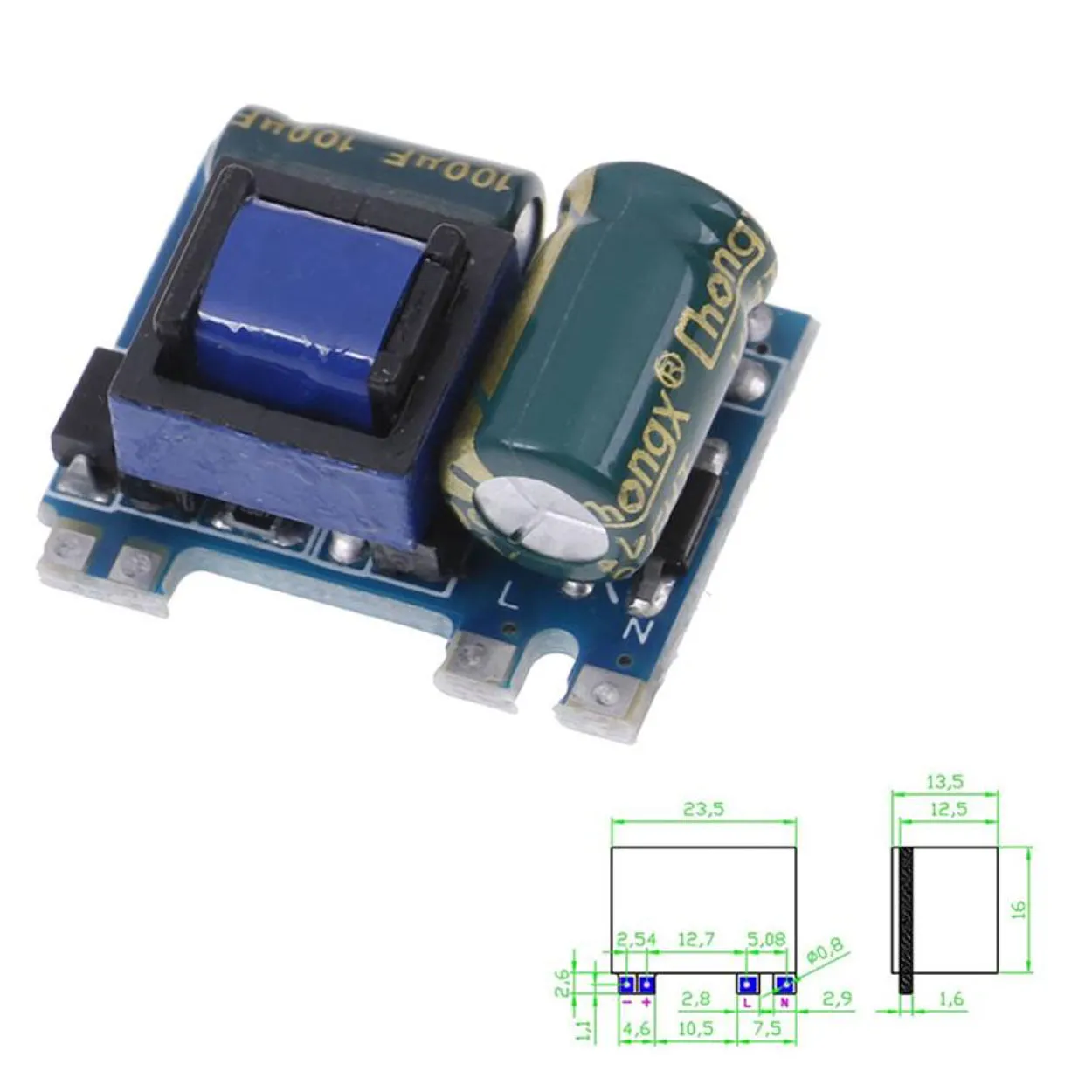

- L x W x H (mm): 25 x 19 x 12
- Weight (gm) : 6
Documentation
Package Includes
- 1 x AC-DC 5V 600mA 3W Isolated Switching Power Supply Module 220V to 5V Buck Step Down Module
