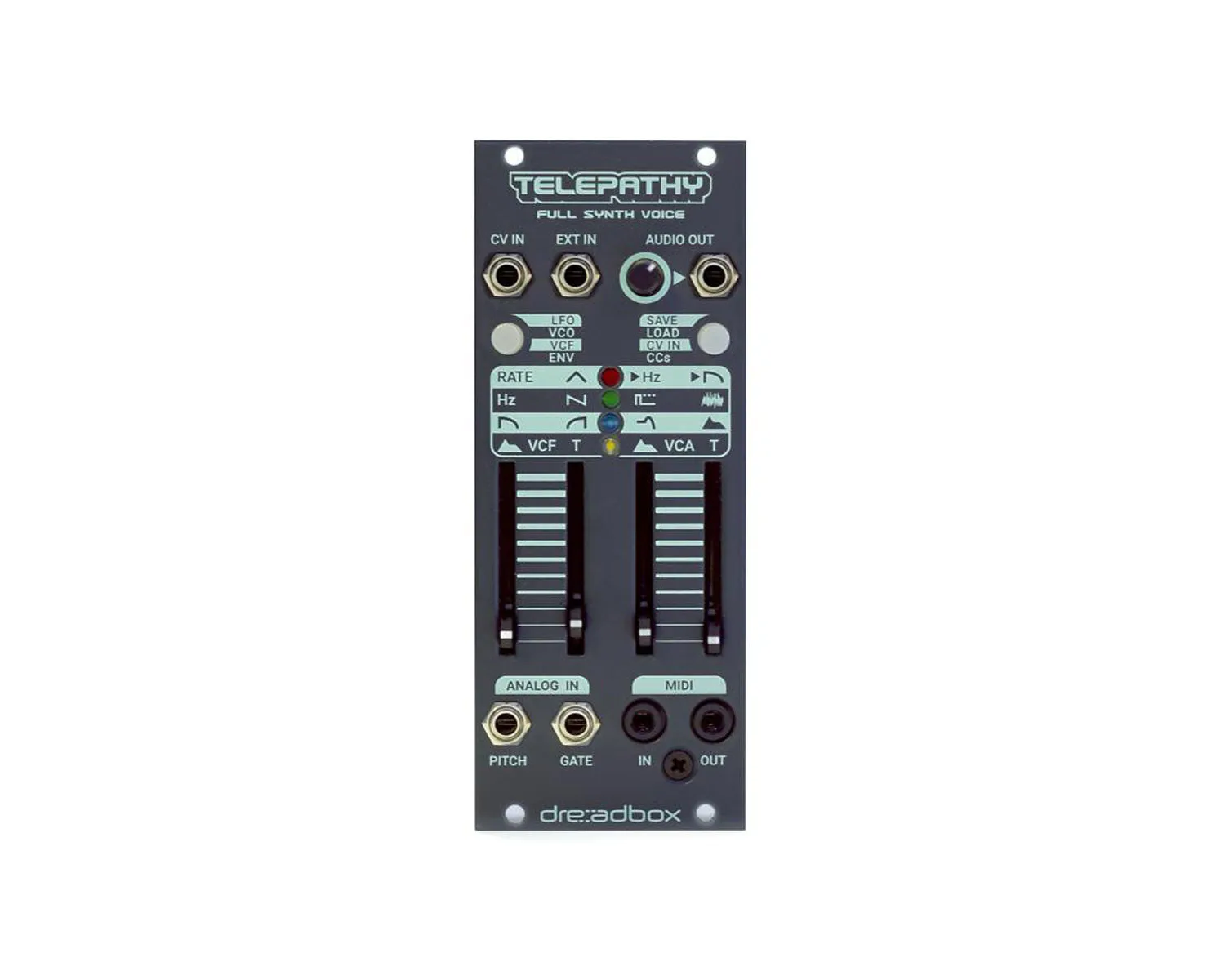

The Dreadbox Telepathy is a 10HP,full voice analog synthesiser module with deep modulation options thanks to its multi-destination LFO and Envelope. From Bass to Lead sounds, to drums and drones, TELEPATHY has broad and versatile sound design capabilities. It has a Full Analog path (Typhon VCO, 4-pole low pass / 2-pole high pass filters, analog VCA) that is digitally controlled for more precision over its parameters, resulting in a warm, present and distinct Dreadbox sound.

Features:

• 1x Analog Oscillator with saw, square
• -1 oct square sub and noise, plus PW control for square, level for noise and waveshape
• Automatic tuning for the oscillator and fine tune
• Analog 24db Resonant Low pass filter with Oscillator FM and Noise FM and 6db High pass filter
• Analog VCA 1x LFO with Free/Key/Track/BPM/BPM Key modes, Fade in, Filter, Pitch and PW CV in patch that can be mapped to all the basic parameters in parallel with dedicated amount for each parameter
• MIDI in/out through
• CC in/out, Program Change in/out
• Multitimbral Chaining functionality via MIDI up to 8 modules 16 presets

Video:

Product Specs

• Item Number: 27682
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Greece
• MPN: DB-TEL
• EAN: 5214001791088
• Modular Grid: Eurorack
• Dimensions: 10 HP
• Power: 107 mA 12V 24 mA -12V ? mA 5V
