Incompatible voltage ranges? Convert between the most common signal ranges: -5 to 5 V, 0 to 5 V and 0 to 10 V. Bonus! Functions as a pair of dual input unity gain mixers, -6 and 6 dB audio gain stages or a multi-output fixed voltage source all under 2 HP.

Voltage control is the basic tenant of modular synthesis: parameters may be modulated by changing control voltages (CVs), simply by plugging in a patch cable. The Bias 2 provides a precise and compact solution to quickly interface signals between modules within a Eurorack modular system, without interrupting your creativity. With meticulously engineered analogue signal paths providing absolutely transparent performance for any Eurorack signal: CV, audio or gates/triggers.

Features:

• Precision analogue dual scaler/offsetter in an ultra-narrow 2 HP.
• Designed to simplify interfacing between common Eurorack voltage ranges: -5 to 5 V, 0 to 5 V and 0 to 10 V.
• Each section can be configured to add or average signals.

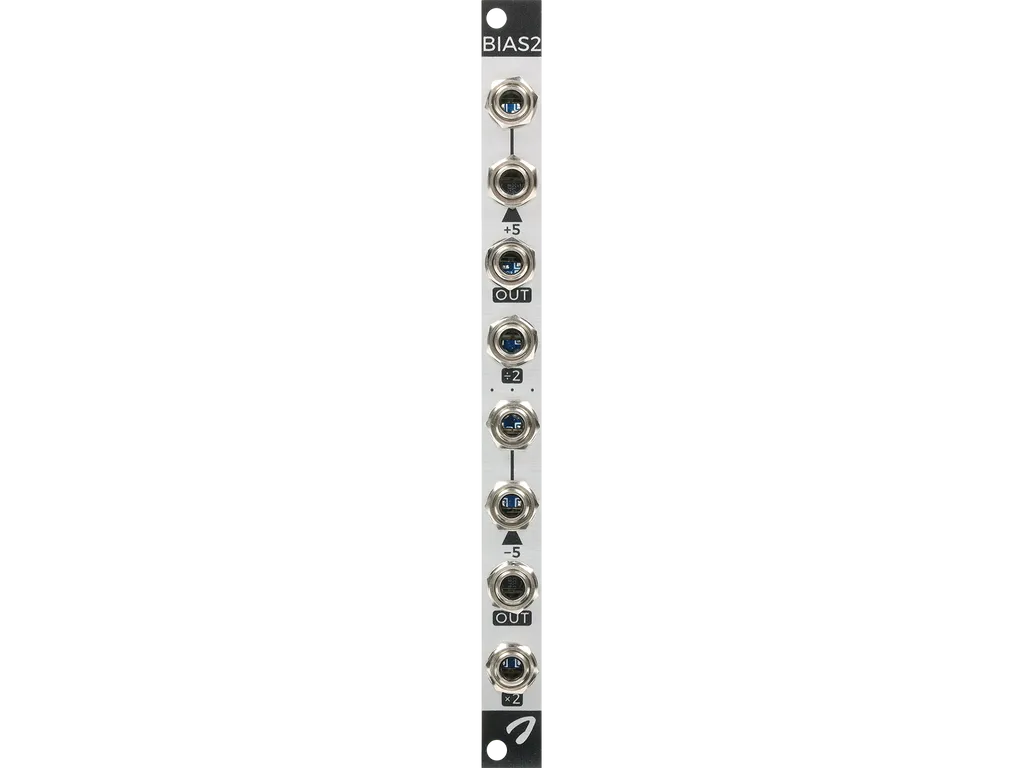

• Top section has a 5 V reference normal and ÷2 attenuation output, bottom section a −5 V normal and ×2 gain output.
• High gain accuracy, very low offset, noise and distortion, flat bandwidth to 20 kHz: suitable for any signal.
• Impedance-compensated outputs.

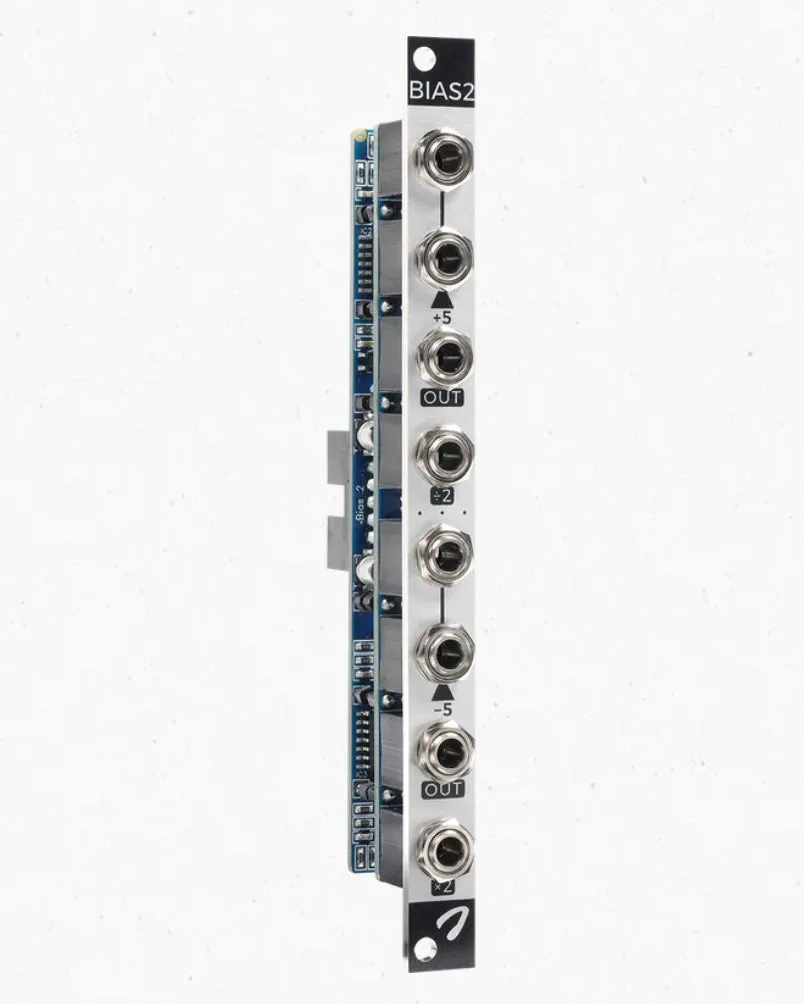

• Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
• Bullet-proof design: polarised power header and MOSFET protection circuit.
• Includes 16-to-10-pin Eurorack power ribbon cable.
• Premium mounting hardware: black screws, black nylon washers and matching hex key.
• High-quality components and assembly; designed and made in Belgium.

Product Specs

• Item Number: 27368
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Belgium
• MPN: JORB2
• Modular Grid: Eurorack
• Dimensions: 2 HP 40 mm deep
• Power: 20 mA 12V 20 mA -12V 0 mA 5V
