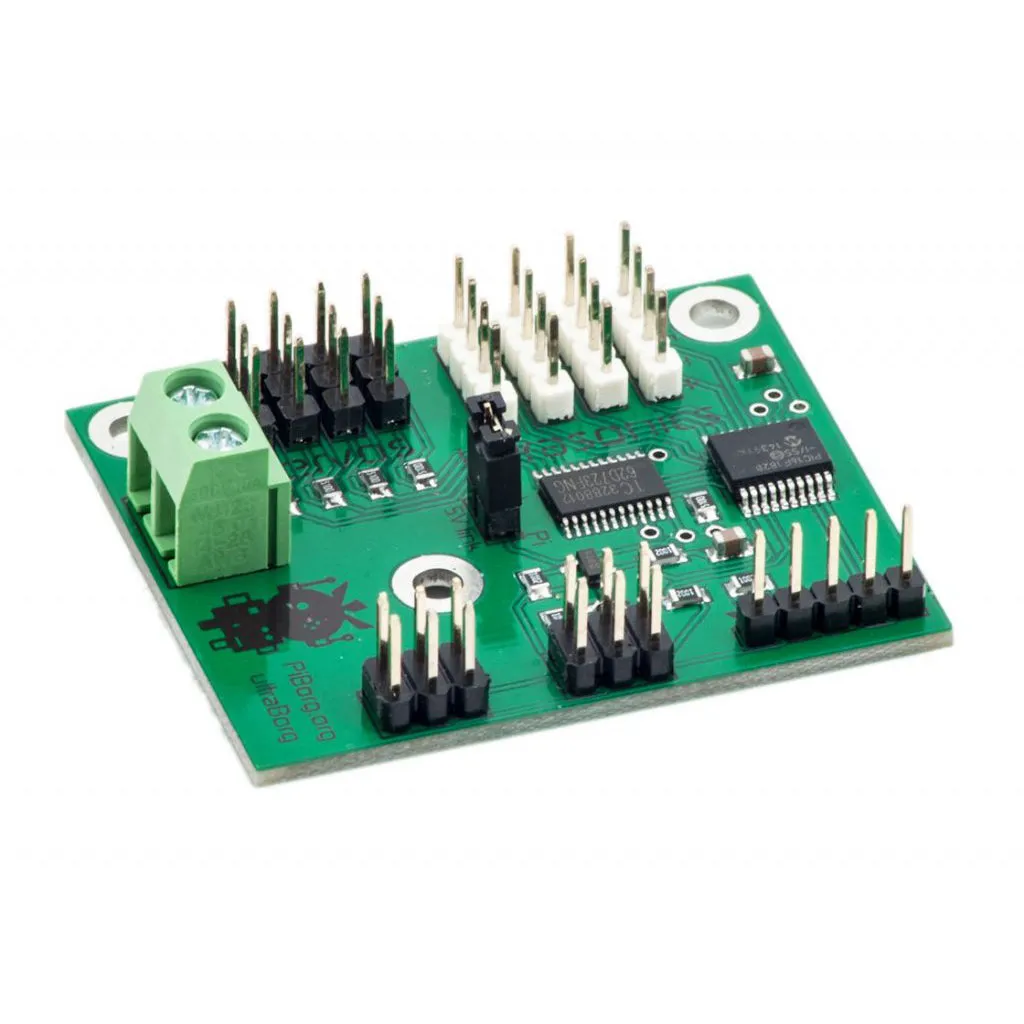

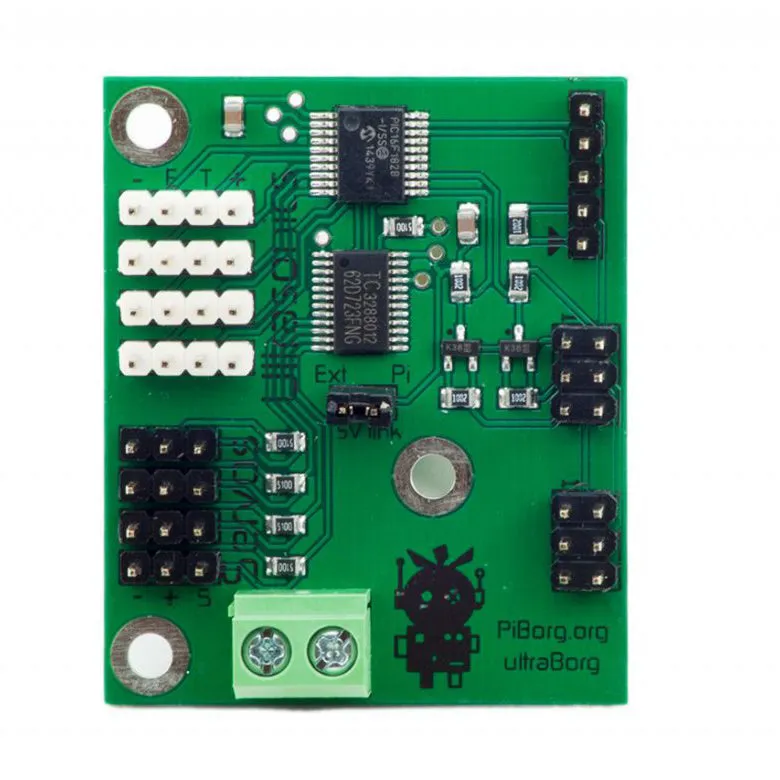

UltraBorg is a great way to get servos and ultrasonic sensors connected to your Raspberry Pi without the hassle of complicated code and wiring - simply plug in servos and sensors and you're ready to go! :)

You can even control your servos and read distances straight from your .

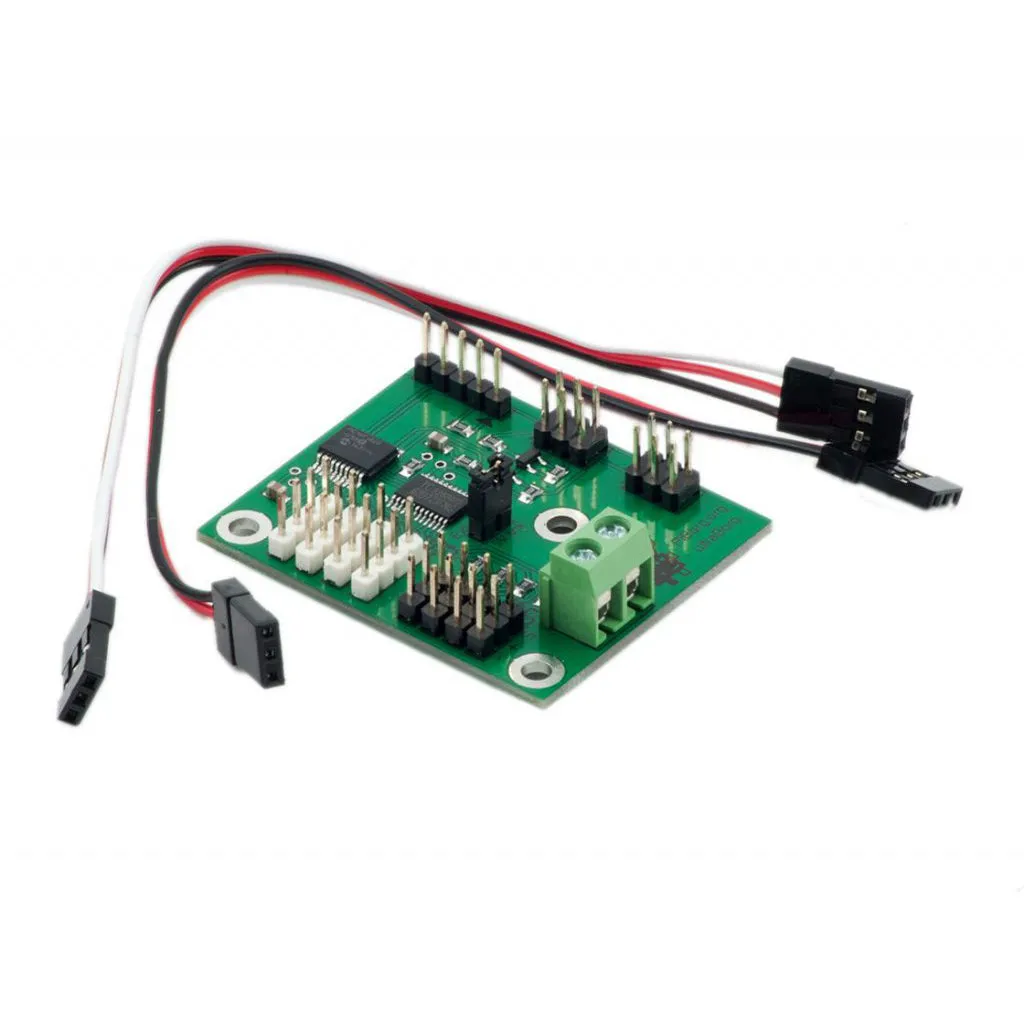

This purchase is for 1x UltraBorg and 2x i2c interface cables only.

Features

• Compatible with all flavours of Raspberry Pi (B /2/3/Zero/ZeroW), Arduino and other i2c compatible devices
• Servo Control
  • 4x Precision 16 bit PWM ouptuts
  • Controls up to 4 Servos simultaneously
  • Allows saving in EEPROM of power up, max, and min limit positions
• Ultrasonic Interfaces
  • Interfaces with up to 4x HC-SR04 ultrasonic modules
  • Read all 4 simultaneously
  • Controlled by microprocessor so software timing not required
• Features external 5V connector to seperately power Servo/USM and Pi. Can be linked for sharing power with Pi*.

*please note if you are using servos, it is recommended to power the UltraBorg seperately.

To get started

• Simply plug in 5V source or a 4xAA battery pack into power
• Plug servo motors into servo connectors
• Plug HC-SR04 modules into Ultrasonic connector with 4pin cable
• Plug I2C cables into Raspberry Pi
