These updated TSOP56 adapter modules for the XGecu T48 programmer offer enhanced functionality. The updated v2.0 design does away with the baseplate and socket design of the original, instead you can buy just the adapter you need, or purchase all three. The adapters enable reading and programming of various TSOP56 packages with the T48 (aka TL866-3G) programmer. Featuring precision pins, the durable ZIF socket is ideal for recovery and/or programming operations. This adapter replaces the older SN001 series of boards which do not work on the T48 as XGECU has removed support for them.
Please note: These adapters only can work on the XGecu T48 programmer, there are not for other programmers such as the TL866CS, TL866A, TL866II or T56.

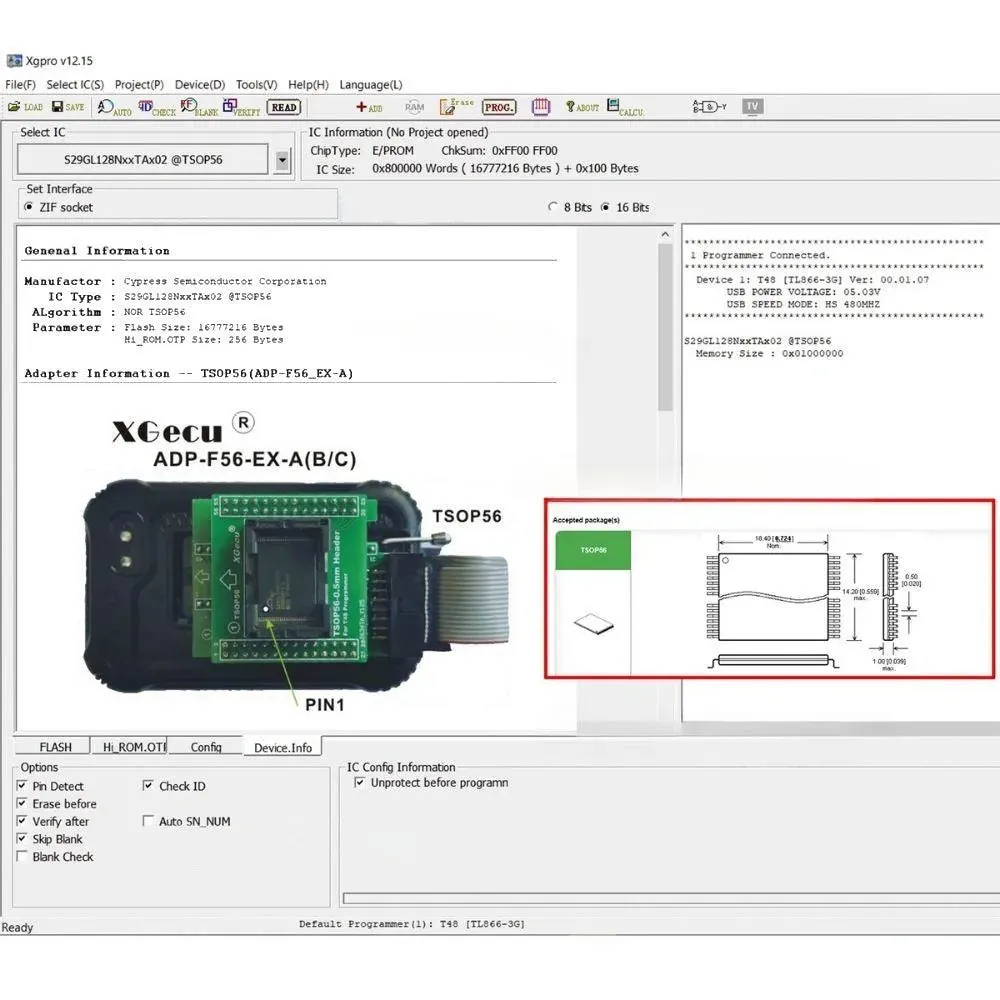

Please see the 'Info' link at the top of the description for the T48 chip support list. Looking for other T48 adapters? , need DIP8 adapters instead? , if we don't have the one you're looking for please get in touch.
Looking for other T48 adapters? , need DIP8 adapters instead? , if we don't have the one you're looking for please get in touch.
Features:
- For use with TSOP56 0.5mm NOR, NAND, EMMC, EPROM IC packages
- For T48 Programmer only
- Ideal for 29XXXTSOP56, 28F32/64/128/256, 28F128/256/512/00A-P, S29GL128NxxTAx02 and similar IC's
- Replaces TL866II SN001 and TSOP socket adapters
- ZIF socket rated for 10,000 actuations

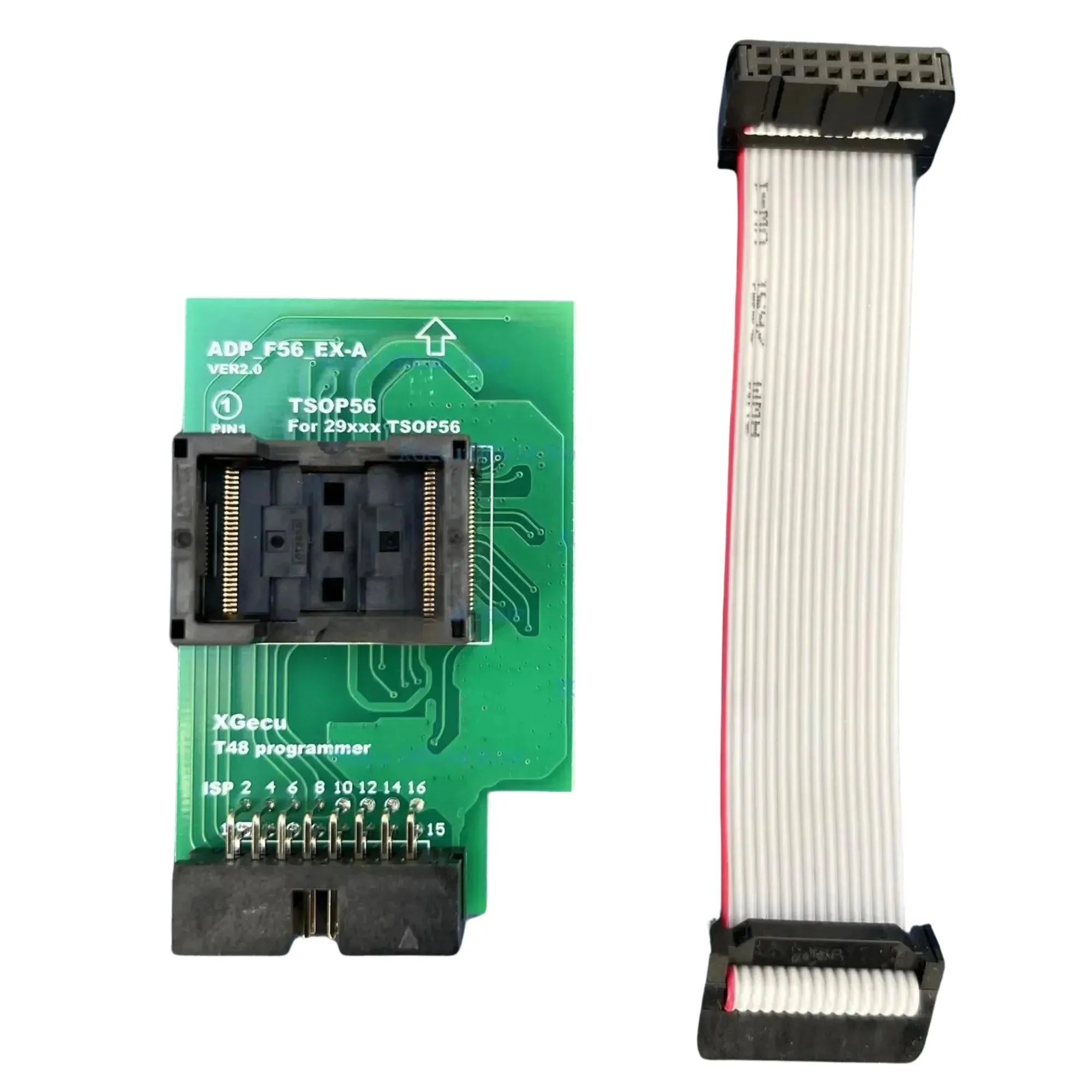

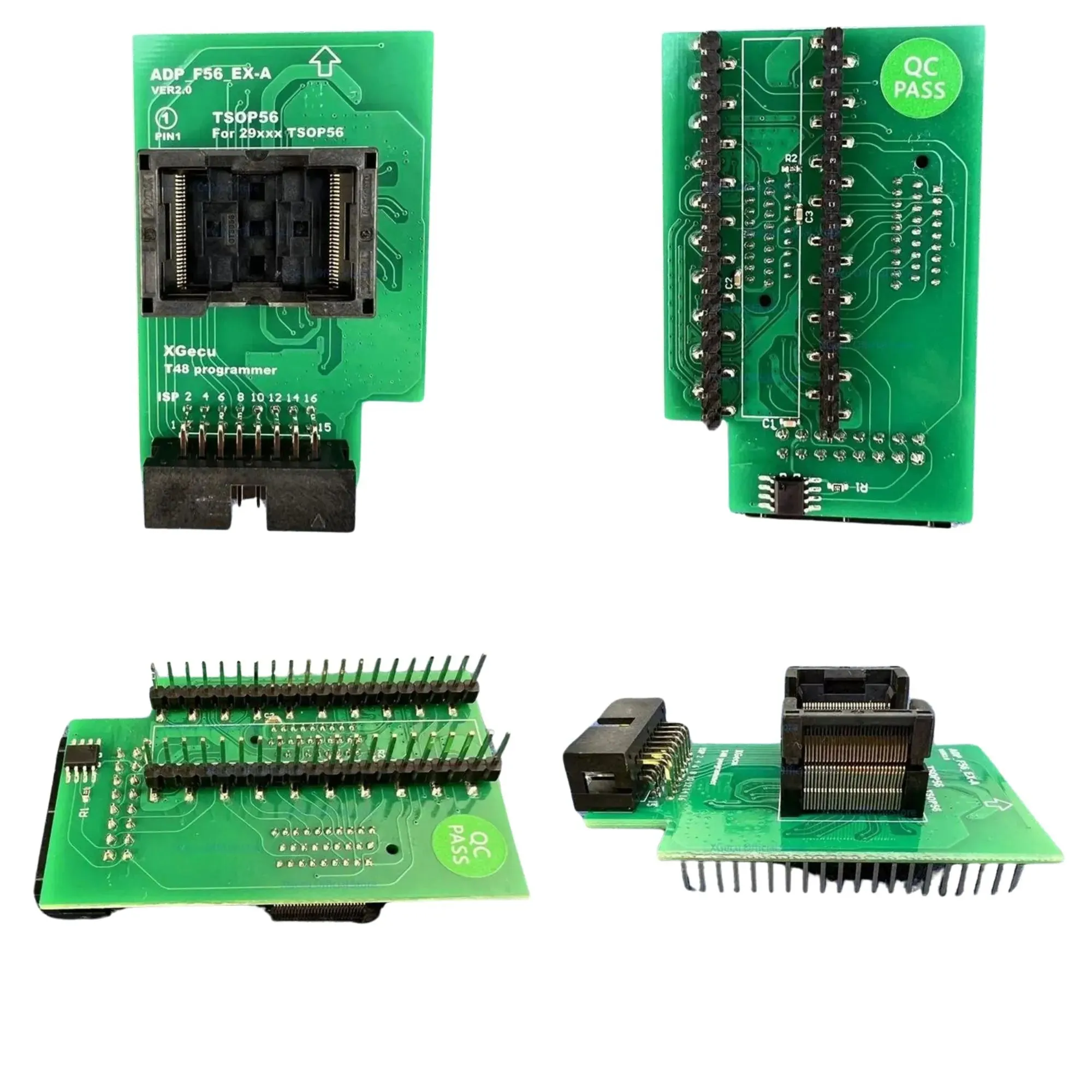

- Plate ADP_F56_EX-A supports: 29xxx series chips

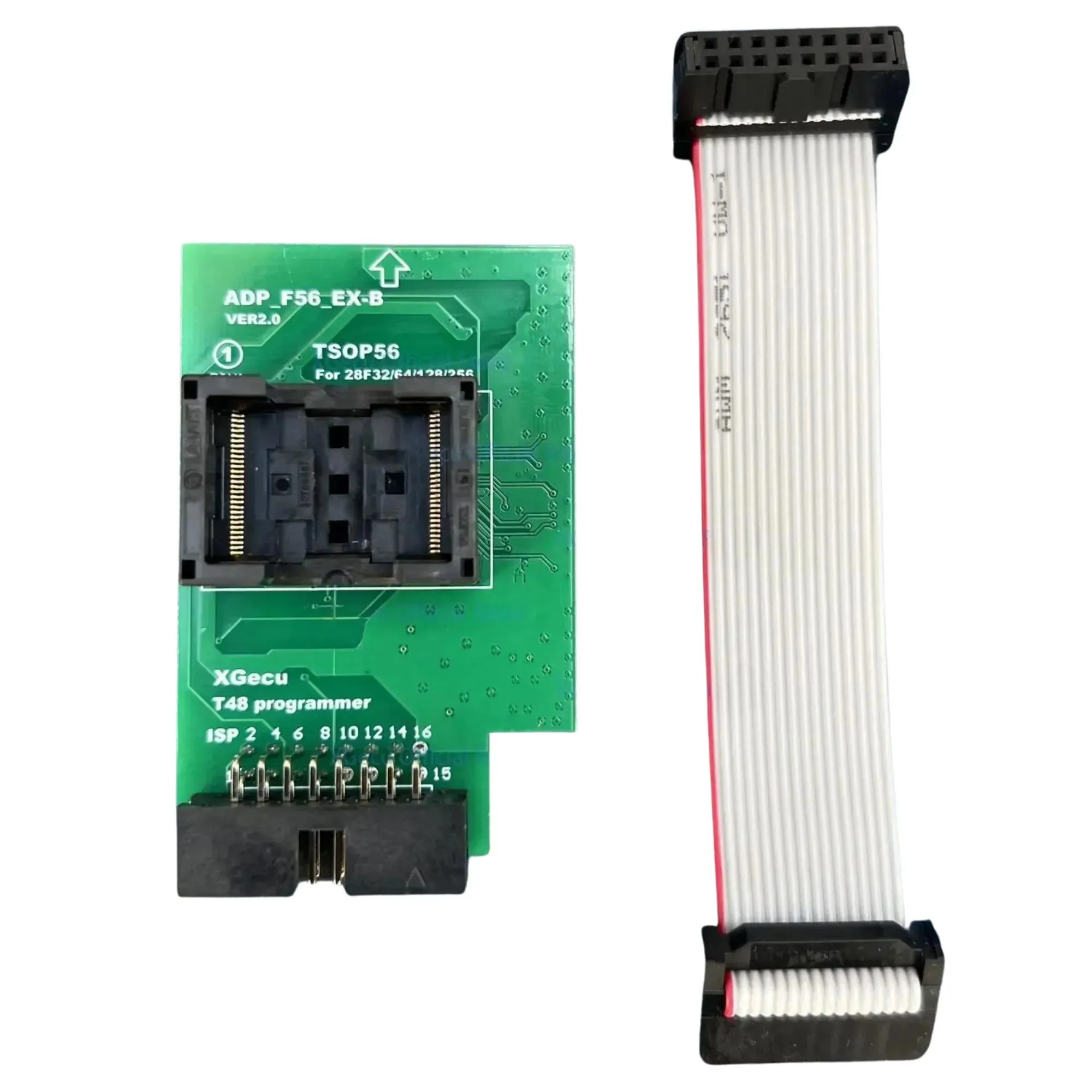

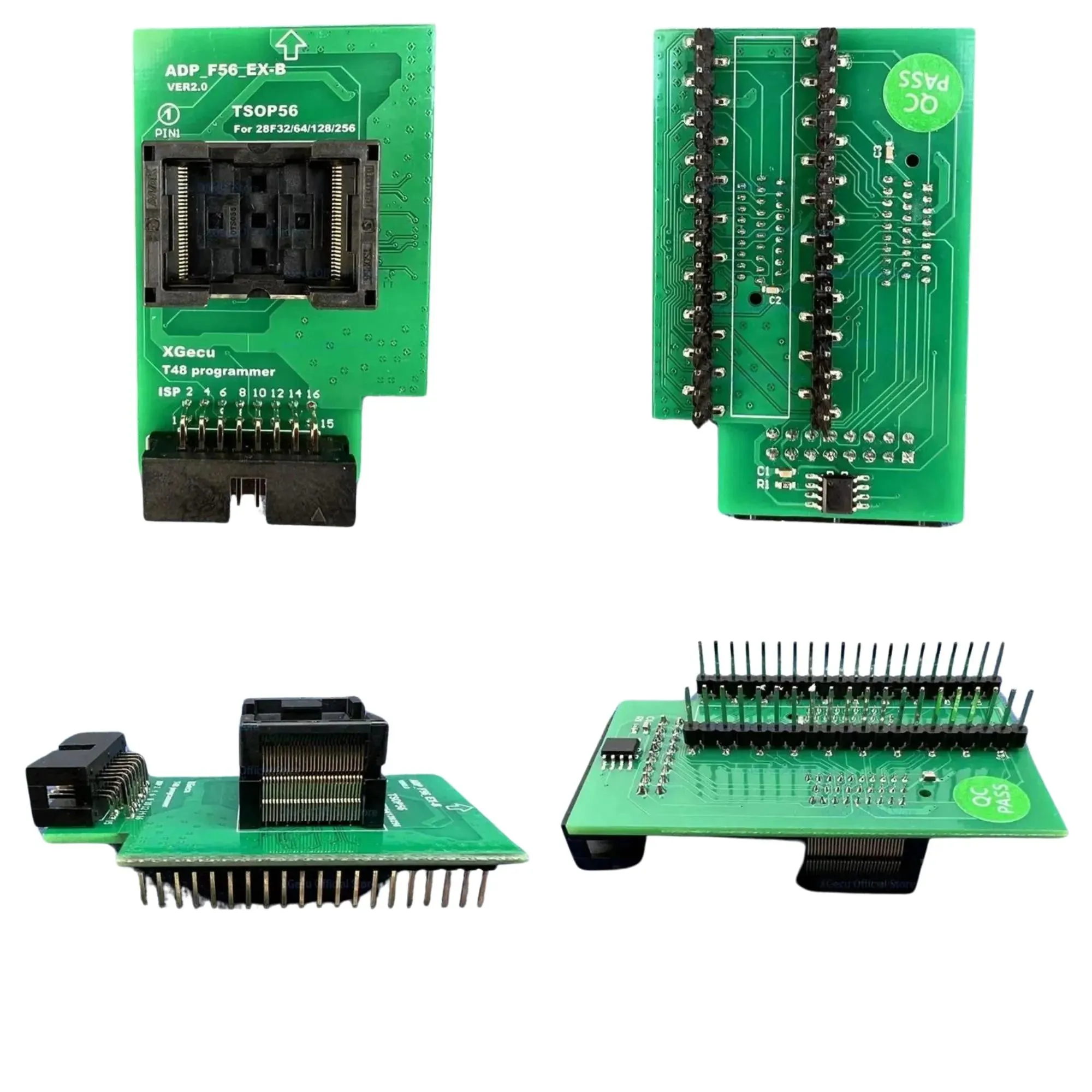

- Plate ADP_F56_EX-B supports: 28F32/64/128/256 series chips

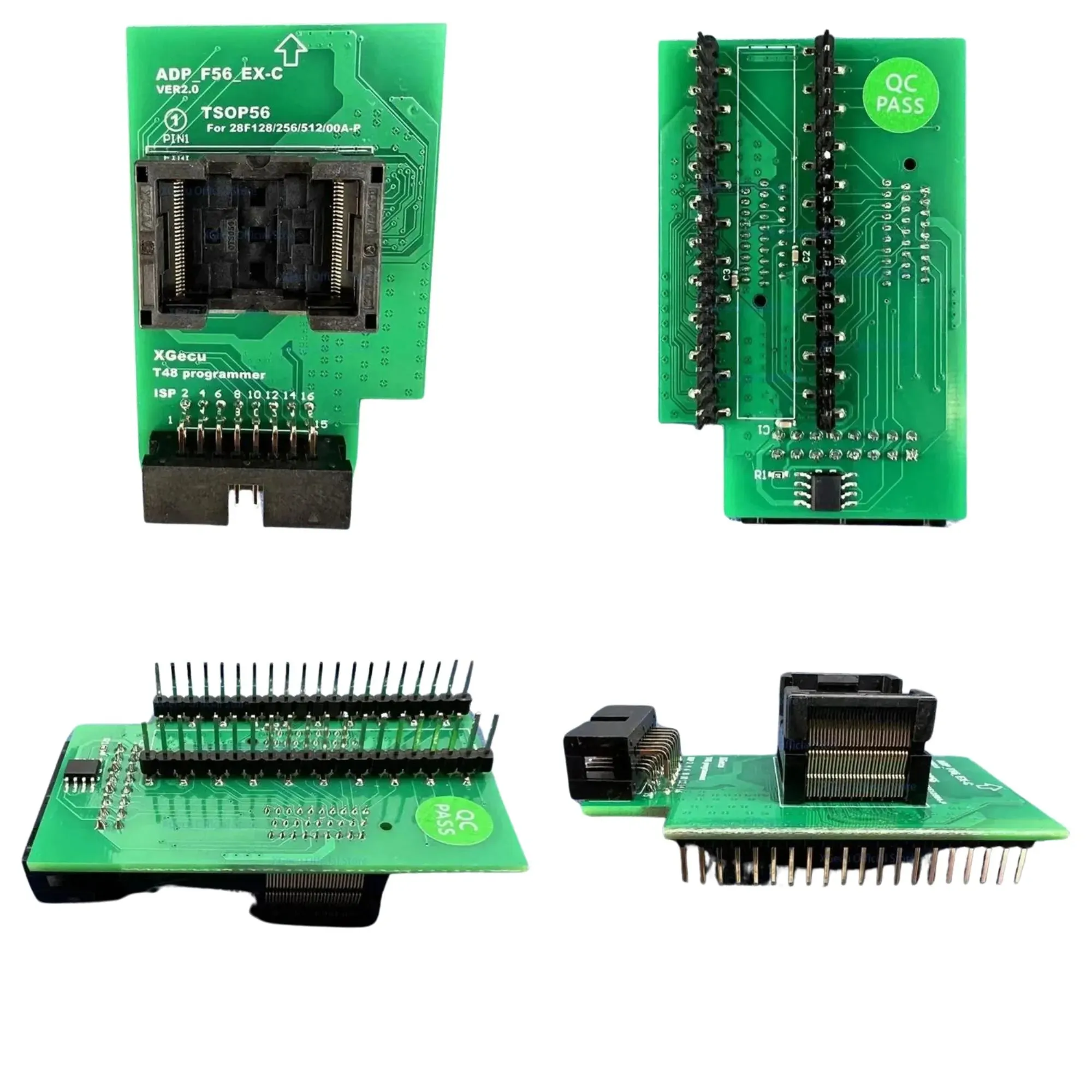

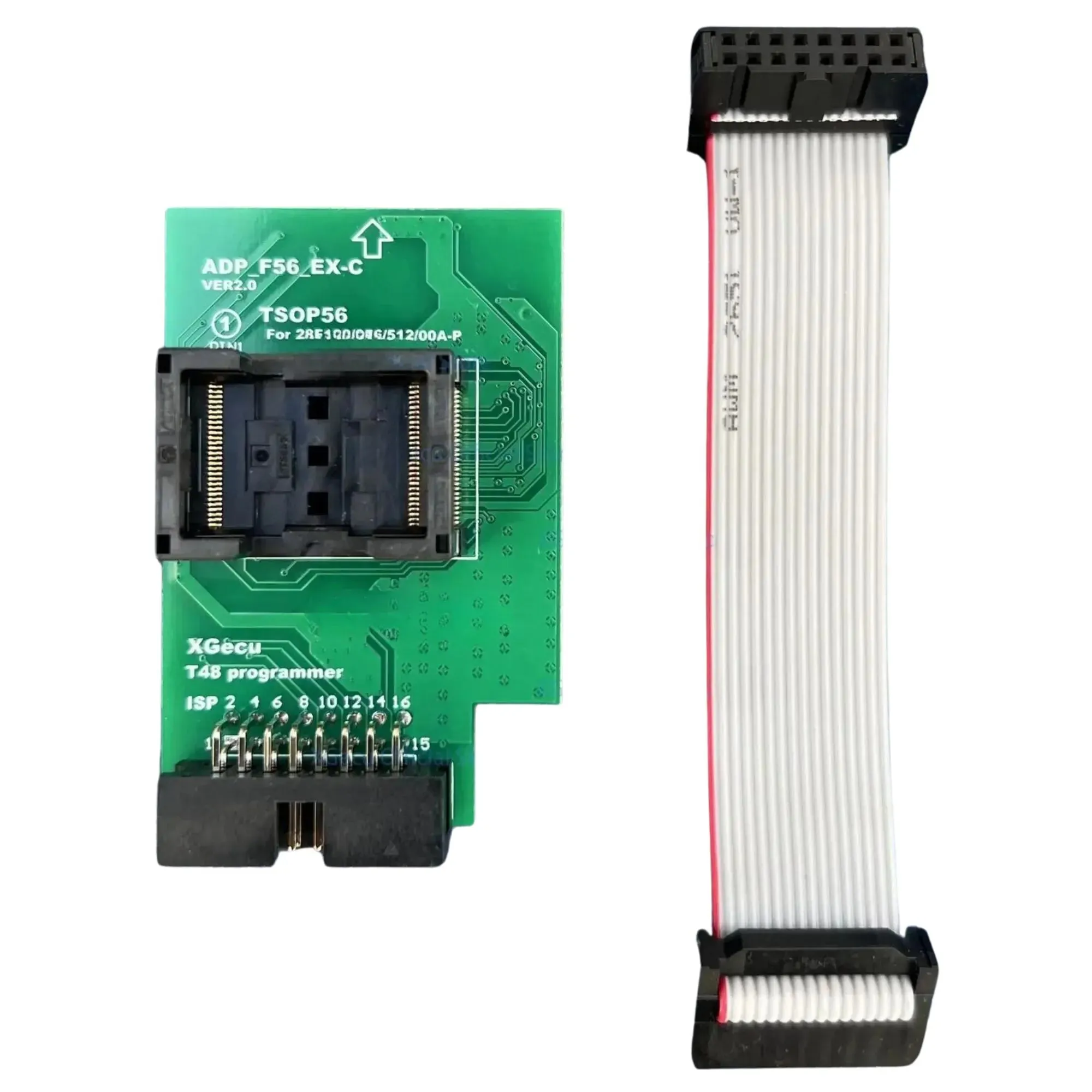

- Plate ADP_F56_EX-C supports: 28F128/256/512/00A-P series chips

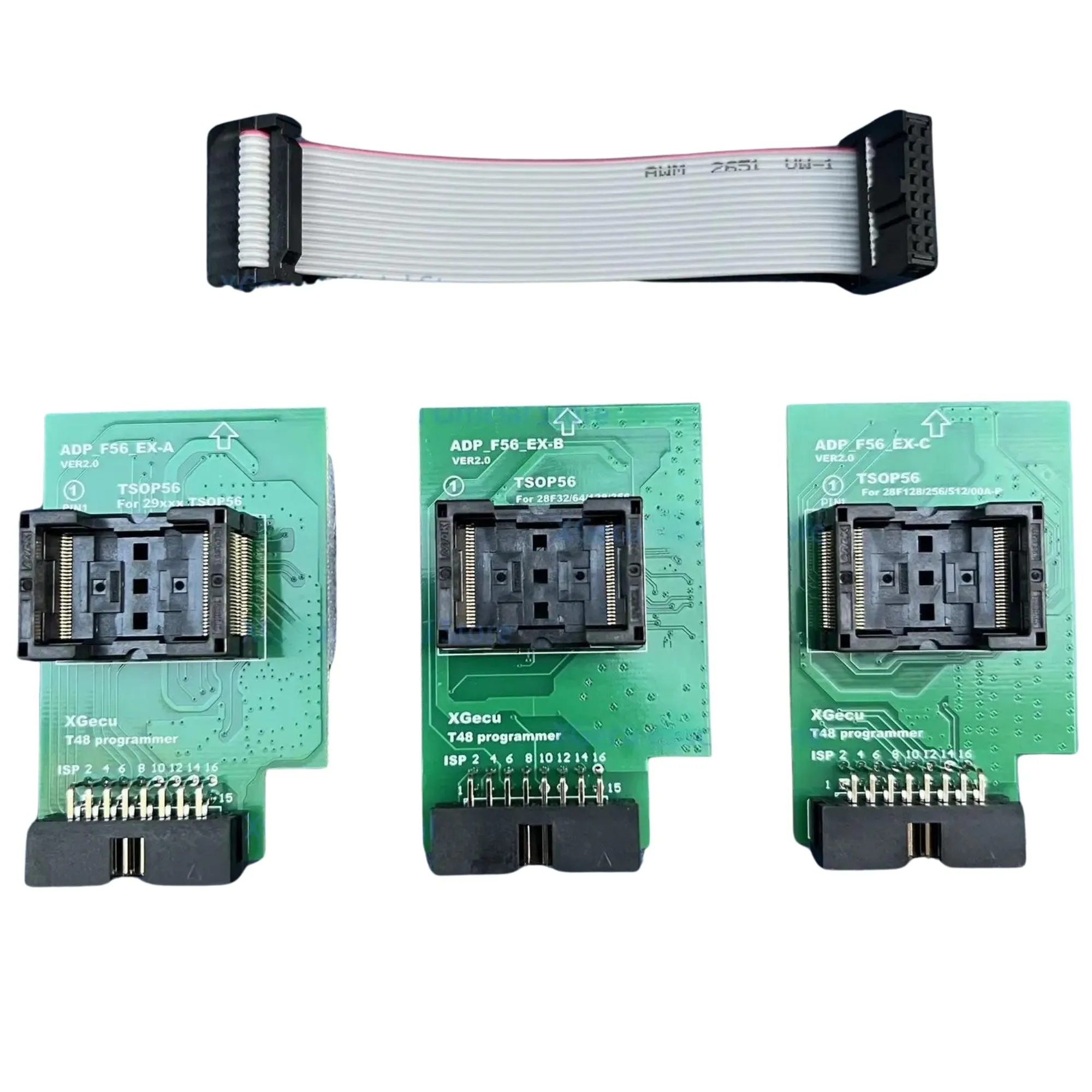

- Item includes: 1x TSOP56 Header PLate, 1x ISP cable, 1x ADP_F56_EX-A, 1x ADP_F56_EX-B, 1x ADP_F56_EX-C
